Pump Rooms

Complies with the standards, UNIEN 12845/20- UNI 11292/19 - UNI 10779/21

The pump rooms are designed and built to contain all types of fire pumping units. All pump rooms are equipped with the mandatory components to make the entire room compliant with the UNI 11292/19 standard.

Request a quote

Technical features

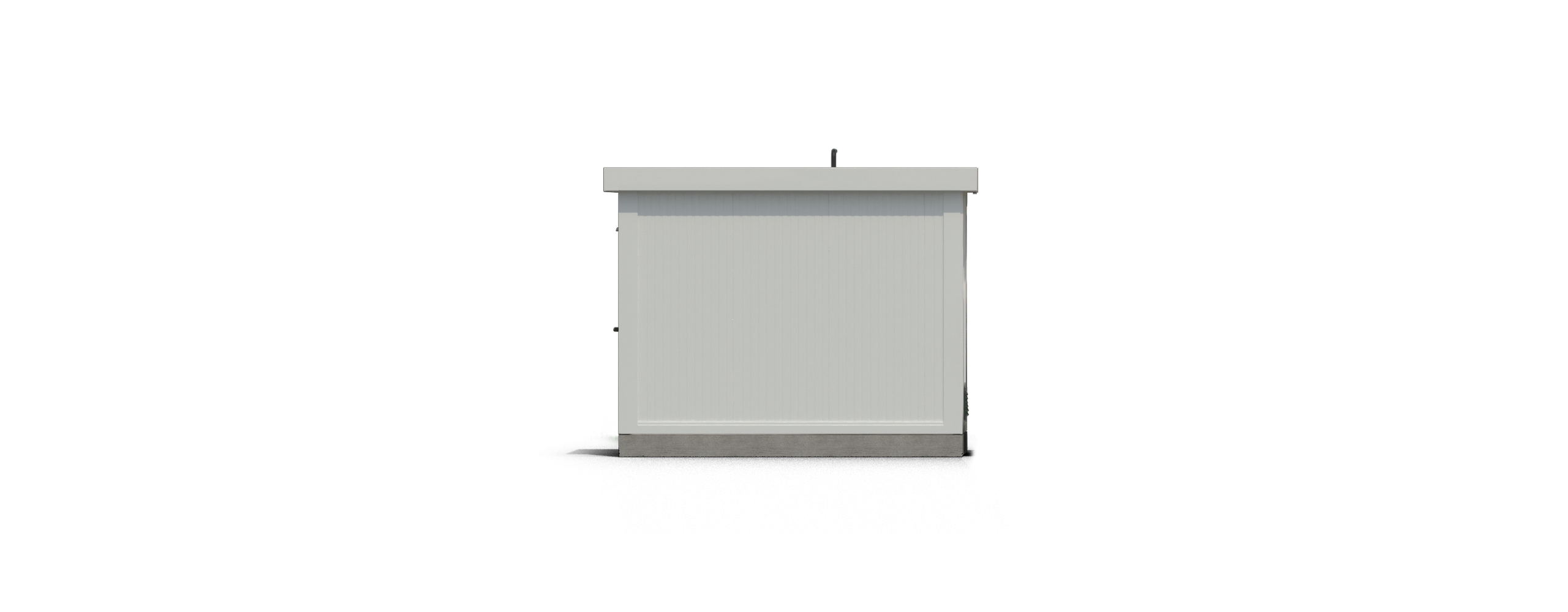

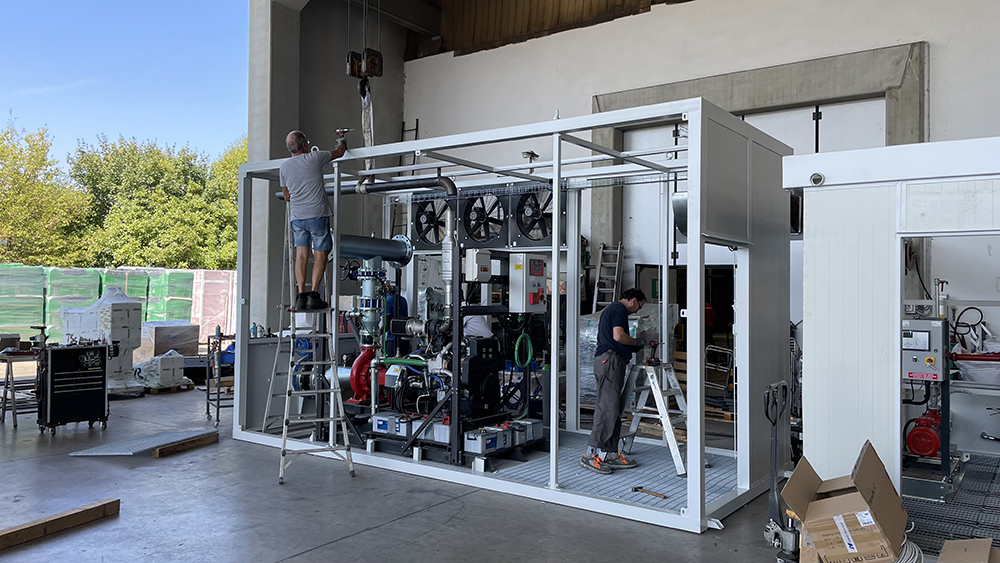

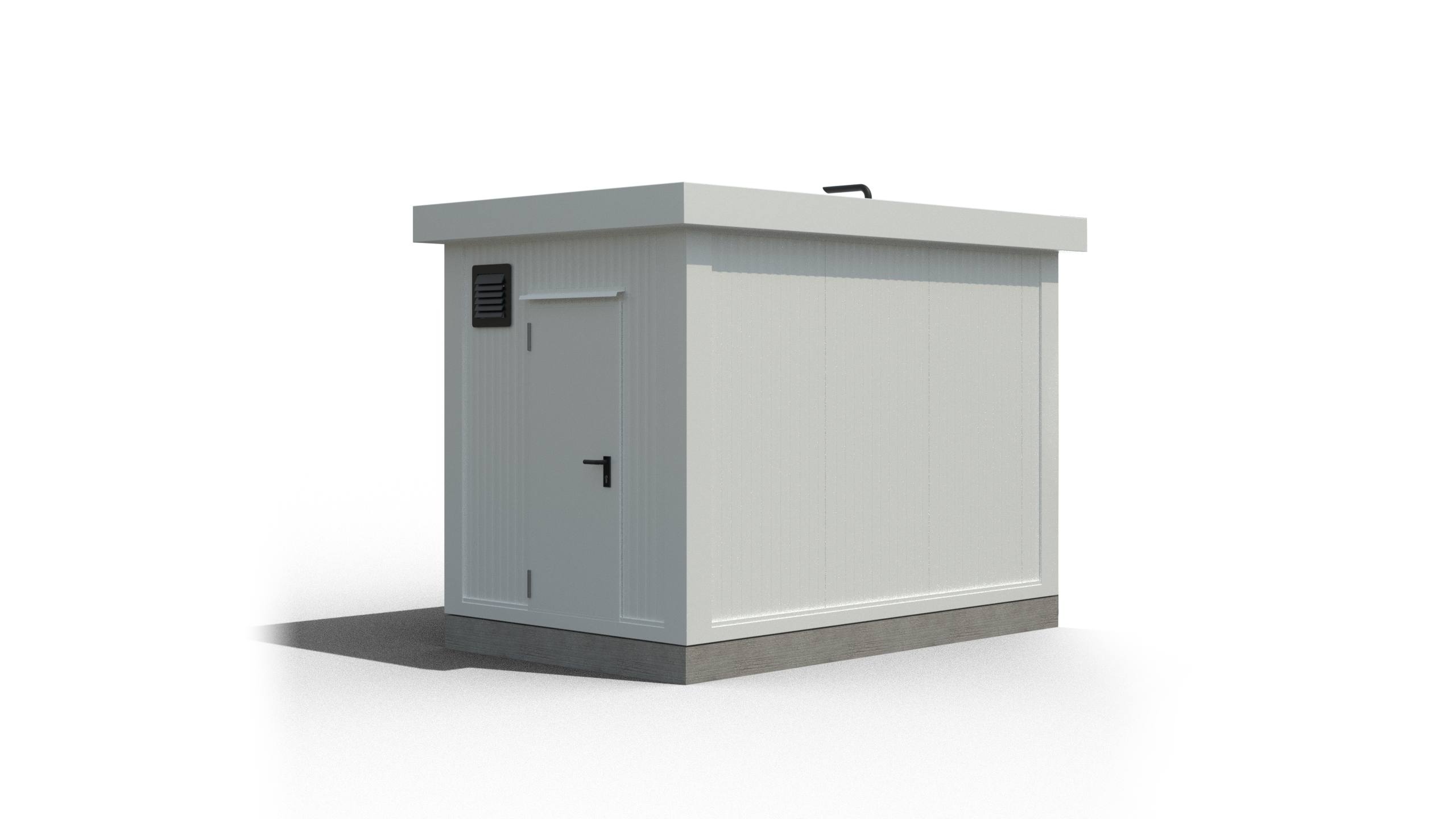

Technical compartment box for installation of all types of pumping units made with metal load-bearing structure and infill in A2-s1, dO sandwich panels front access door and any side walls that can be opened if necessary front access door with fire resistance class A1 and any side walls that can be opened if necessary. The Righetto Serbatoi technical compartment is designed to guarantee maneuvering spaces compliant with what is indicated in the UNI 11292/19 standard and above all guarantees the safety of the operators who, as indicated in point 5.2.2. of the aforementioned, must be able to operate on the electrical panels and control devices while being protected from the elements. The technical compartment must have REI60 fire resistance according to the UNI 11292/19 standard, to ensure this our prefabricated boxes are structured as follows:

The tubular steel load-bearing frame is painted and has the function of giving mechanical resistance to the structure.
The infill panels are made with a sandwich system with the outside in aluminum and the inside in mineral fiber with a thickness of 80 mm.
The REl60 fireproof access door certified by the manufacturer has a fire resistance class A1 (as per UNI 11292/19 standard).
The complete box is REI 60 certified with REI CERT drawn up by a qualified professional (as standard UNI 11292/19).
The complete box is structurally calculated to resist earthquakes and all atmospheric stresses that can interfere and is certified by a qualified professional (as per UNI 11292/19 standard).

In our pump rooms it is possible to insert all the solutions of fire-fighting pressurization units.

Installation of a suction pump group usually with suctions brought directly to the outside with flanged connections and priming tanks for the pressurization pumps
Installation of subhead pump group with suctions directly brought outside with flanged connections to connect the external, horizontal or vertical water reserve
Installation of vertical axis pump groups (Vertical Turbine Pumps) with provision for opening roof for insertion of vertical axes on site

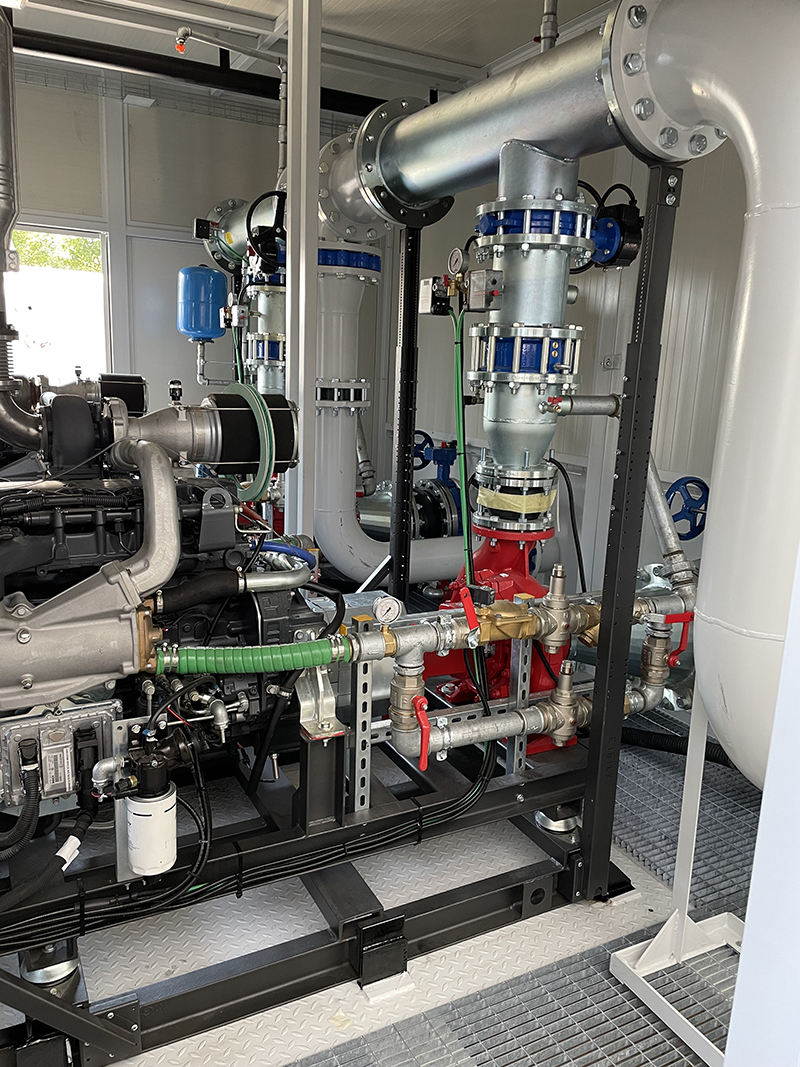

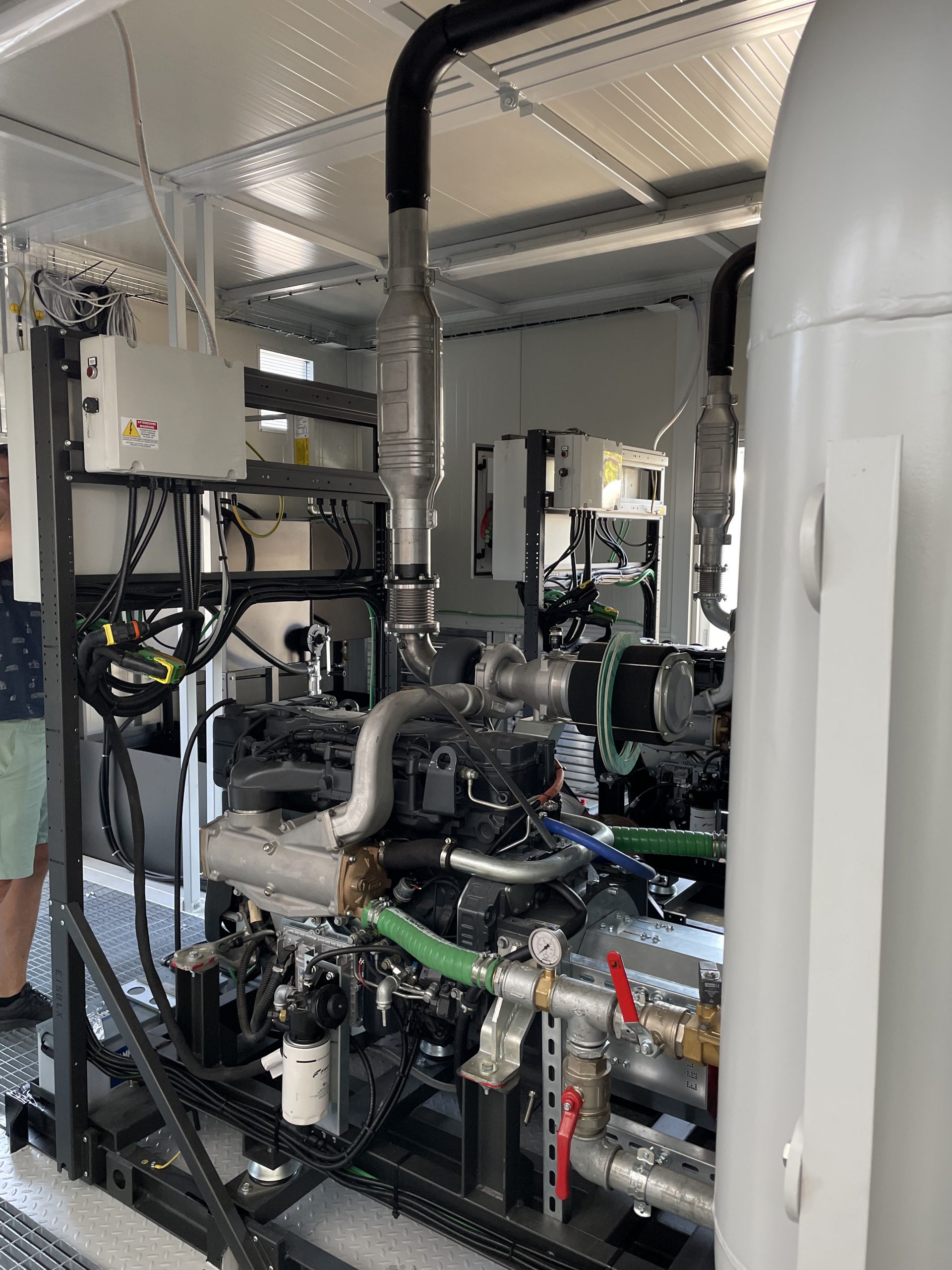

UNI 12845/20 pump group composed of electric pump, motor pump and pilot complete with electrical panels and various accessories always supplied on separate skids as per UNI 11292/19 standard

Electric fan for forced air exchange, functioning even in the absence of electricity, complete with UNI 11292 /19 point 5.4.2.2 grille.

REI60 front access door vertical type measures min. L 800 H 2000 and with fire reaction class A1 as per UNI 11292/19 point 4.2.2.

Pump intakes complete with anti-vortex plate filter, eccentric reduction cone, anti-vibration joint, shut-off butterfly valves and various connection flanges as per UNI 12845/20.

Electrical panel for the management of all services inside the technical compartment already wired and complete with circuit breakers and life-saving circuit breakers, all certified with Declaration of Conformity.

Inverter voltage rescuer complete with batteries to operate the electric fan (if one or more motor pumps are present) in the absence of electricity, UNI EN 11292/19 standard point 5.4.2.

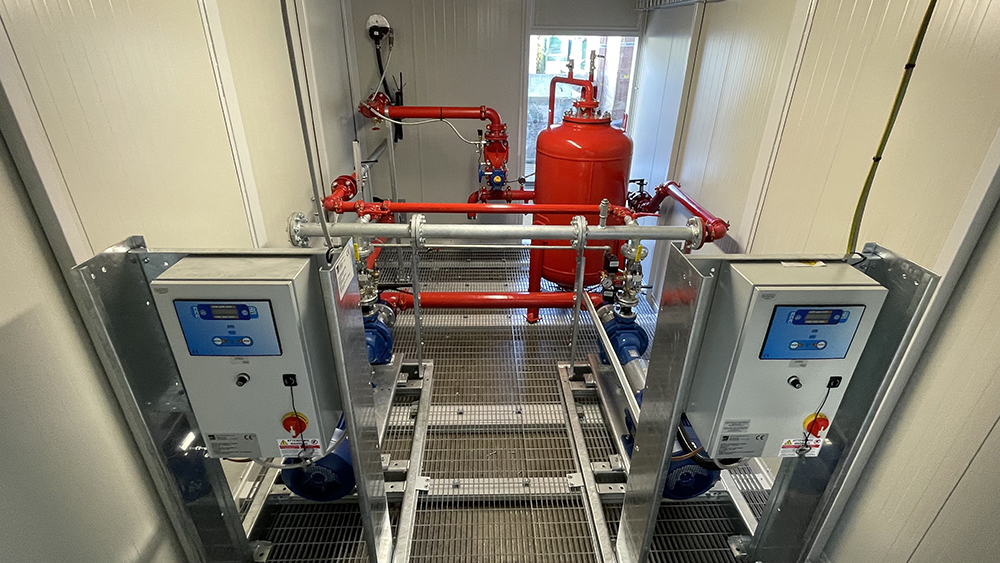

Narrow mesh grating or ashlar sheet metal floor, uniform, non-slip, raised so that operators can move around safely, as required by UNI 11292 regulation.

Possibility of having the water delivery and tank loading pipes inside the technical compartment, thus eliminating problems related to the cold which would force the client to have to use insulation, heating cables, etc.

2000W electric heater complete with thermostat for maintaining the temperature inside the room as required by UNI 11292/19 standard, also allowing to reduce internal humidity.

Service lighting lamp (min.200 Lux) with integrated emergency light (min.25 Lux x 60 min) ref. point 6.3.2. UNI 11292 standard.

Digital level indicator with continuous reading of the quantity of water present in the tank and programmable alarms with the possibility of remote control. CEE socket for connecting plugs of any equipment or various services as required by UNI 11292/19 standard.

Electric resistance on the water reserve side complete with regulation thermostat and temperature probe to avoid any ice problems in winter.
